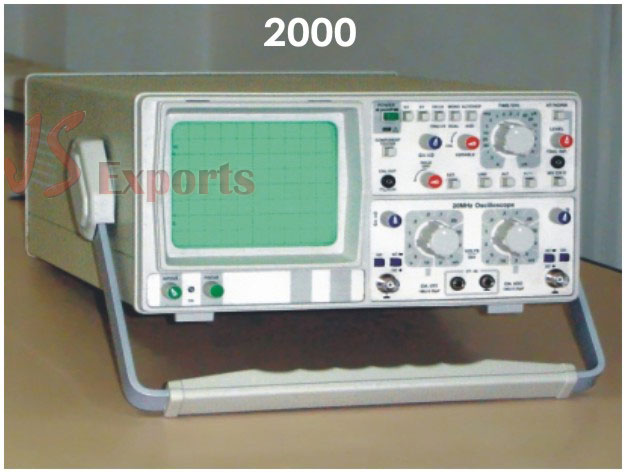

| Vertical Axis | |
| Display Modes :
| CH1, CH2, CH2 inverted, Dual (Alt/Chop), Add & X-Y. |
| Two identical
channels with the following: |
| Sensitivity : | 2mV/div 10 10V/div in 12 calibrated steps
in 1-2-5 sequences. |
| Accuracy : | ±3% |
| Input Impedance :
| 1M // 25 pf. |
| Input Protection : | 500V (DC + Peak AC) |
| | |
| Trigger System | |
| Auto/Normal with variable level adjuster with LED indication. |
| Bandwidth : | Dc-40MHz. |
| Sources : | CH1 or V mode or
External |
| Modes Auto : | 50Hz to 20MHz. Minimizes triggering adjustments and provides
wide trace line in the the abscence of trigger signal. |
| Modes Normal : | DC to 20MHz.
Useful for triggring low frequency waveforms. |
| | |
| Sensitivity | |
| Internal : | 2mm up-to 2MHz.
4mm up-to 20MHz |
| External : | 50mV up-to 2MHz
150mV up-to 20MHz. |
| | |
| TV Mode Int Ext | |
| TV line : | 2mm
50 mV |
| TV Frame : | 1 div of composite sync
1 div of composite sync |
| Ext. Input Protection : | 250V RMS |
| | |
| Hotizontal Axis | |
| Sweep Speeds : | 0.5 sec/div to 0.1 m sec/div in 21 calibrated steps in 1-2-5
sequences. |
| X-Y Operation : | CH1 as X, CH2 as Y relating their basic
sensitivities. |
| Bandwidth : | DC -2MHz |
| | |
| CRT | |
| Front panel controls for intensity , Focus, Astigmatism and T race Rotation, and full mu matal shielding
provided. |
| Display : | Internal graticules (8x10cm) |
| Accelerating Potential : | 0.5MM
MAX. |
