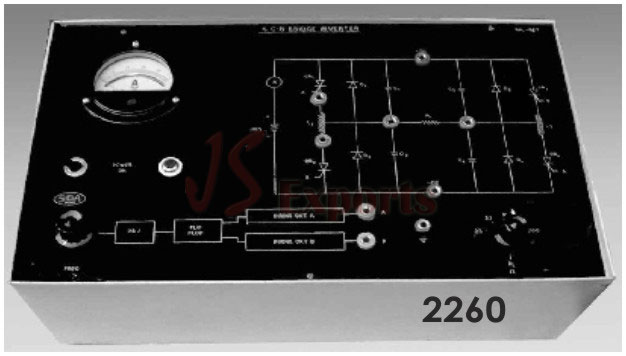

| SCR Bridge Inverter |
| |
|
|
| SCR Bridge Inverter
(2260)
|
| Set up consists :- Pulse generator (60-90 Hz nominal) with firing transformer, Four
SCRs, one inductor one transformer, one capacitor, two analog meters and RL load to
accomodate three lamps of
different ratings. The input supply in form of DC 24 volt 6 Amp. Built in power supply, 230V mains operated Complete with
working manual &
patch cords. |
|
|
