| SCR DC Motor Speed Control Using Chopper |
| |
|
|
| SCR DC Motor Speed Control Using Chopper
(2256)
|

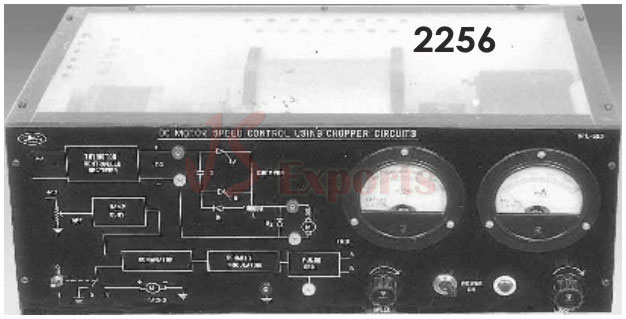

| Kit consists dc regulated 100 volt supply, two silicone controlled
rectifiers, one tapped
inductor, two diodes, one series wound universal motor of 1/8 H.P. A small dc motor
for tacho
feedback, switch for open loop/close loop run, analog RPM meter, firing
angle control circuit with rate feedback. loading
arrangement with current meter. Test
points for observations. Built in power supply, 230V mains operated Complete with
working manual & patch cords. |
|
|
