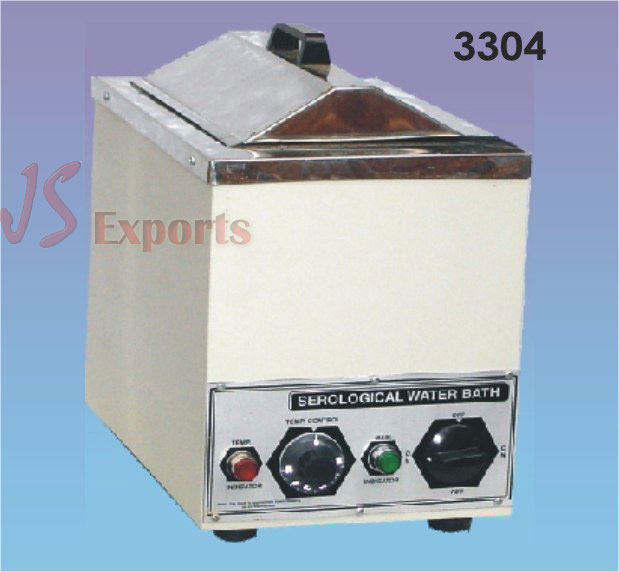

Double wall construction, inner being made out of highly polished thick stainless
steel and outer made out thick mild steel sheet finished in stoving white enamel paint or staple mat colour combinations. The
gap is filled with special glass wool for temperature insulation. The bath is provided with a drain cock to easily drain out
the water and clean the chamber when required. A pyramidal shaped cover is prov ided. Immersion type heating elements are
fitted at bottom. temperature range 5șC above ambient to 80șC with accuracy ±0.5șC to 1șC is controlled by capillary
thermostat regulated by a graduated knob on the panel, which is also provided with pilot lamp etc. The equipments is workable
on 220V olts, 50Hz single phase AC. The baths are supplied without thermometer and stirring arrangement. Working
chamber sizes in mm (Stainless Steel)
a) 300 x 175 x 175 b)300 x 250 x 175 c)375 x 300 x 175 d) 450 x 300 x 175
Optional Accessories: (Extra Cost) : Stirring arrangement with S .S. rod and blades, Digital temperature indicator ,
Digital indicator -cum-temperature controller . |
