| Single Phase Dual Converter |
| |
|
|

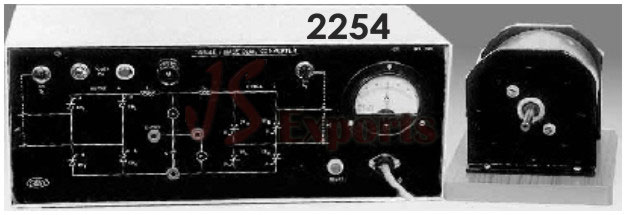

| Single Phase Dual Converter
(2254)
|
| Set up consists: Eight thyristors to form two bridges. L - C filter circuit,
step down 150
volt AC supply @ 1Amp, circuit for firing control of thyristors. one analog centre zero
ammeter and
test points at various places, small dc shunt wound motor. Built in power
supply, 230V mains operated Complete with
working manual & patch cords. |
|
|
