| Single Phase to Single Phase Midpoint Cycloconverter |
| |
|
|
| Single Phase to Single Phase Midpoint Cycloconverter
(2253)
|

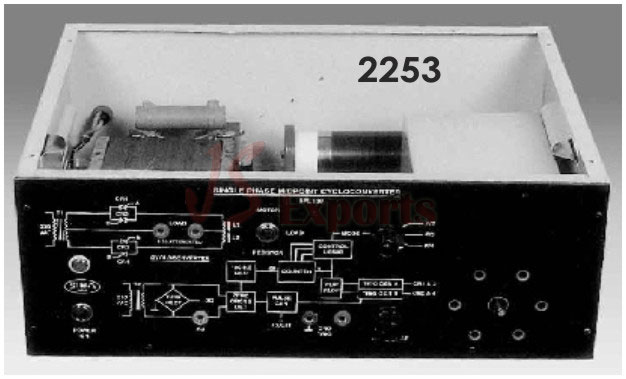

| Set up consists: Four SCRs, one transformer, one
midpoint tapped inductor, logic
controlled firing control circuit. A selector switch is provided to obtain 1/2, 1/3 and
1/4 of input frequency f. Optoisolators are used for coupling of logic signals with the thyristors. Test points are given at
different places for observations. A resistive load and an inductive load in form of small motor is provided. Built in power
supply, 230V mains operated Complete with working manual & patch cords. |
|
|
