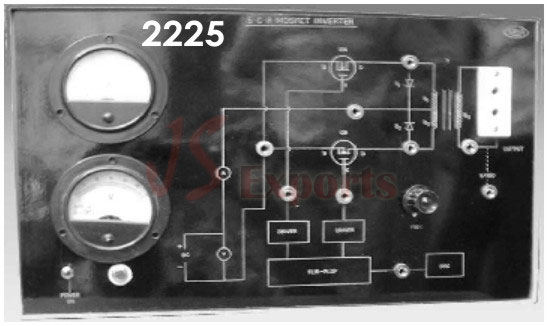

| Study of Inverter Circuit (Mosfet Based) |
| |
|
|
| Study of Inverter Circuit (Mosfet Based)
(2225)
|
| Set up consists: Pulse generator with duty cycle control, two
power mosfets, one
transformer one lamp load, one volt and
one ľAmmeter. Provided with 24 volt 6 Amp
dc source.
Built in power supply, 230V mains operated Complete with working
manual & patch cords. |
|
|
