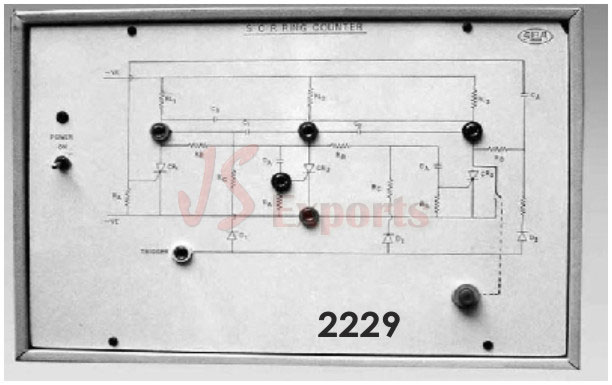

| Study of SCR Ring Counter |
| |
|
|
| Study of SCR Ring Counter
(2229)
|
| Kit consists: DC regulated 12 volt supply three SCR with pulse gating circuit,
pulse
generator by timer 555, frequency control, three LEDs to observe sequence,
test points
for observation of
commutation pulses. Built in power supply,230V mains operated
Complete with working manual & patch
cords. |
|
|
